Lip and Plate Style, Rotary Accumulation Table

RSE Standard & Heavy Duty Models

Our rotary accumulation tables are constructed with stainless steel. Each table is built to last a lifetime and designed with a sanitary surface for easy cleaning. RSE’s rotary accumulation table is affectionately known as, Heavy Duty. RSE’s accumulation tables are designed for food and beverage plant environments. Wipe-down IP44 rating, with IP65 motor option.

RSE offers two styles of accumulation tables: Lip style for packaged goods and Plate style for bottles or cans.

Stainless Steel

Stainless tops with reinforced backing plates ensure the tables are flat and stay that way. You want products to transfer smoothly on or off the table and with the RSE models, that’s exactly what you get.

Standard models come standard with DC motors and variable speed DC drives with speed pot. The Heavy duty models come standard with AC motors and variable speed drives (VFD) with speed pot and key pad.

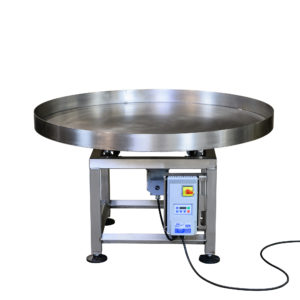

Rotary Accumulation table lip style

Accumulation of bottles, cans, jars or tubs, pouches and bags as well as small cartons or boxes prior to casing.

  • All Stainless Construction
  • NEMA 1 IP40 DC Drive
  • Bolted Frames
  • Reinforced Tops
  • DC Motors
  • Adjustable Table Speed (0-10 RPM)
  • Variable Speed Potentiometer
  • Clockwise/Counterclockwise Table Rotation
  • 150lb Max Table Capacity
  • Rated for use in Wipe Down Environments
  • Adjustable Machine Feet for Leveling & Anchoring
  • Adjustable Line Heights
  • All Stainless Construction
  • NEMA 4X VFD with Rotary Disconnect Switch
  • Embedded I/O for Automatic Line Control
  • Welded Frames
  • Reinforced Tops
  • AC Motors
  • Adjustable Table Speed (0-10 RPM)
  • Variable Speed Drives (VFD)
  • Clockwise/Counterclockwise Table Rotation
  • 250lb Max Table Capacity
  • Rated for use in Wet Food or Washdown Environments
  • Adjustable Machine Feet for Leveling & Anchoring
  • Adjustable Line Heights

Accumulate product on accumulation table before case packing end of line.

Standard Rotary Tables:

  • IP40 Wipe Down
  • Top Diameters Available in 36″ or 44″ Round
  • Double Guide Rails for Tall Products
  • Adjustable Height Stainless Steel Casters
  • UHMW Transfer Shoe for Side Transfer onto Conveyor
  • Load Shelf





Heavy Duty Rotary Tables

  • IP66 Wash Down
  • Top Diameters Available in 36″, 48″ or 60” Round
  • Double Guide Rails for Tall Products
  • Adjustable Height Stainless Steel Casters
  • UHMW Transfer Shoe for Side Transfer onto Conveyor
  • Load Shelf
  • Custom Heights Available
  • Other Voltage Options Available

Standard Rotary Tables:

  • 120 V, Single Phase

Heavy Duty Rotary Tables:

  • 120/240 V, Single Phase
  • 230 V, 3 Phase Optional

Parts are inventoried in Denver and normally available to ship same or next day. Please provide us with the machine model and serial number, as well as a part number. That way we can get your parts needs handled quickly! Service is available on the phone or on site by our engineering team. For Parts or Service needs, contact Right Stuff Equipment at 303.327.4704, or Email Us.
